Design description

A platform that can be used to store books open and placed upright.
Double doors open forward and backward on both sides to prevent them from tipping over.
The opening is W310 x H270, and the book can be opened and closed with a sword.
Art other than books can also be stored in the same way.

Design registration No. 1680344

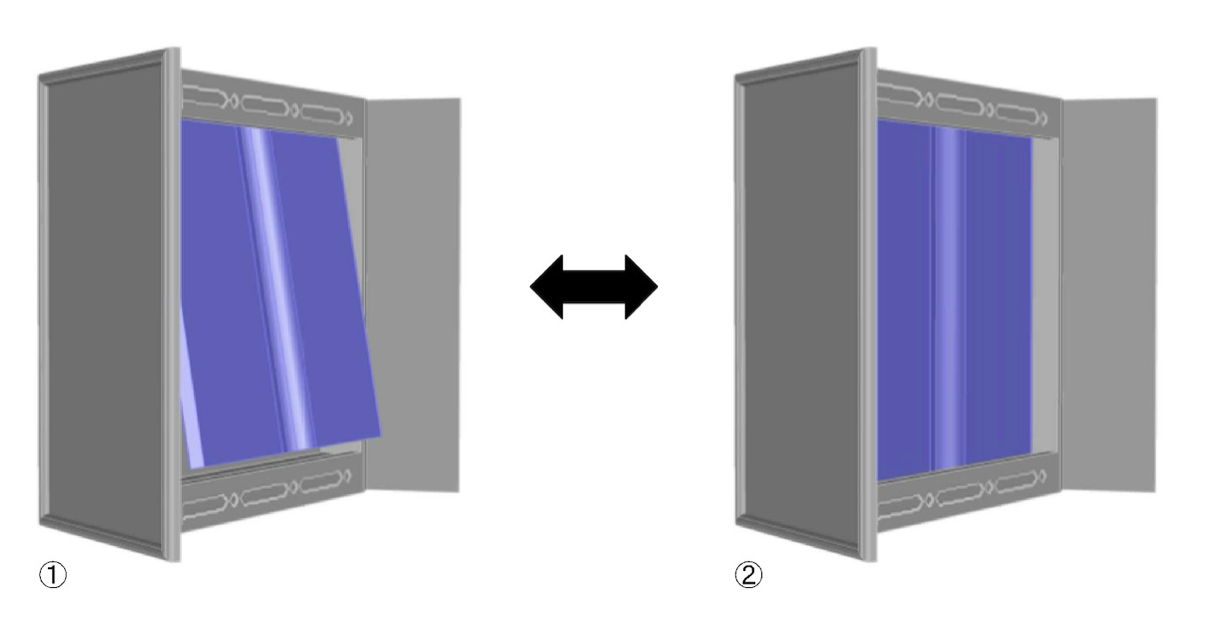

Thumbnail of 'CG illustration of a "Inori no dan"'

AR model

Using your smartphone and AR, you can experience a full-size model of the "Inori no dan".
Scan the QR code with your smartphone or open the link in your browser.

https://palanar.com/ar_contents/d6547bc7bbf21b04

Image of 'QR code'

Drawing

Please refer to this size when creating art for the prayer altar.

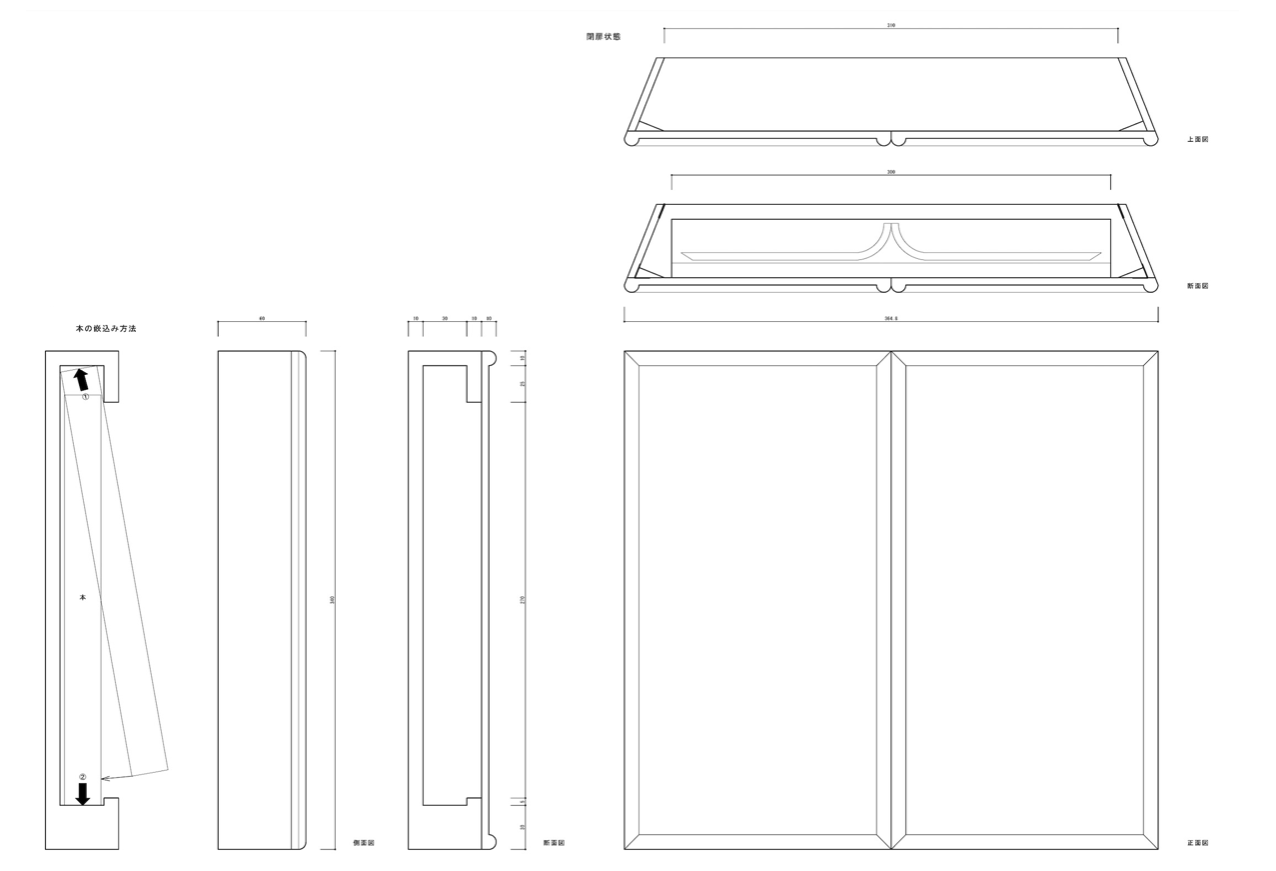

  • Thumbnail of 'Three views'
    Three views

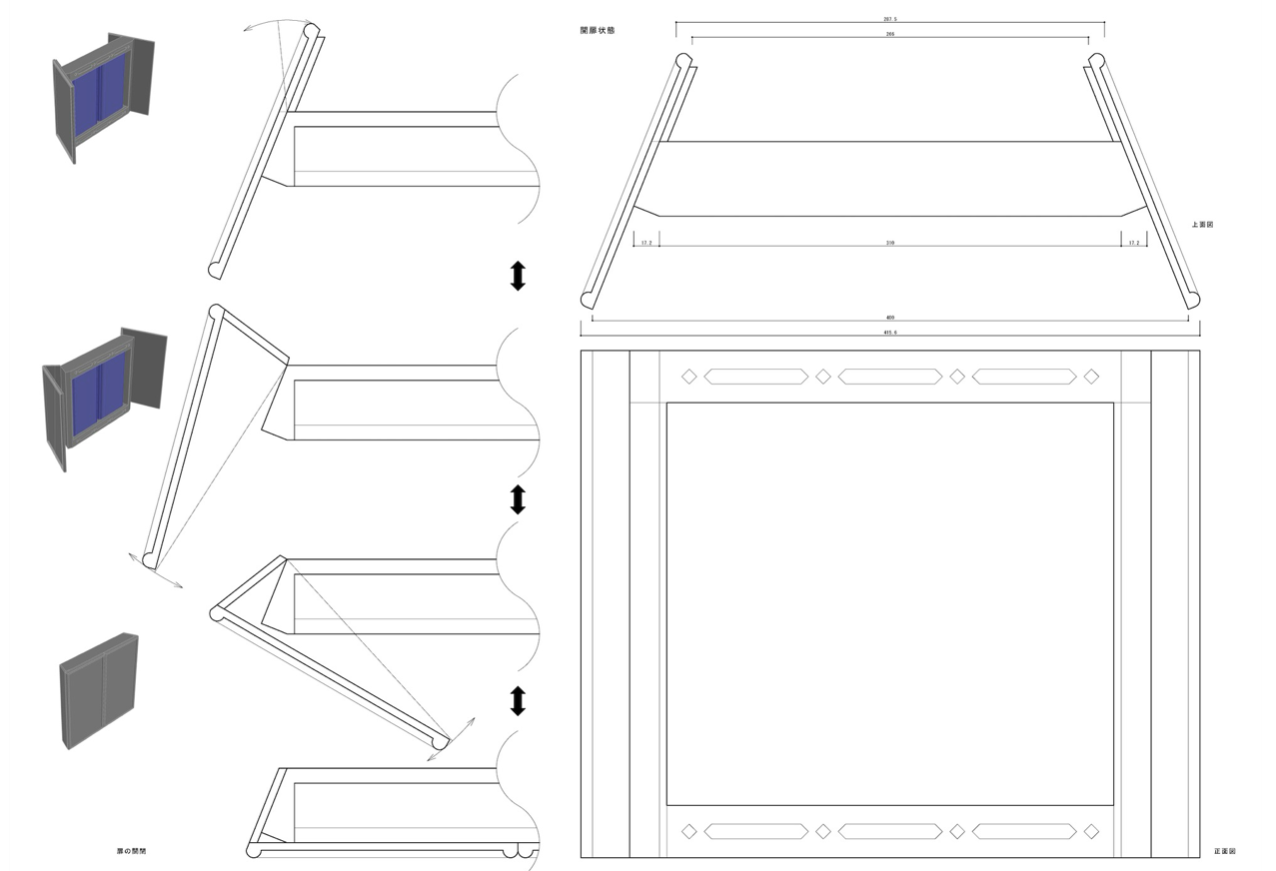

  • Thumbnail of 'Range of motion'
    Range of motion

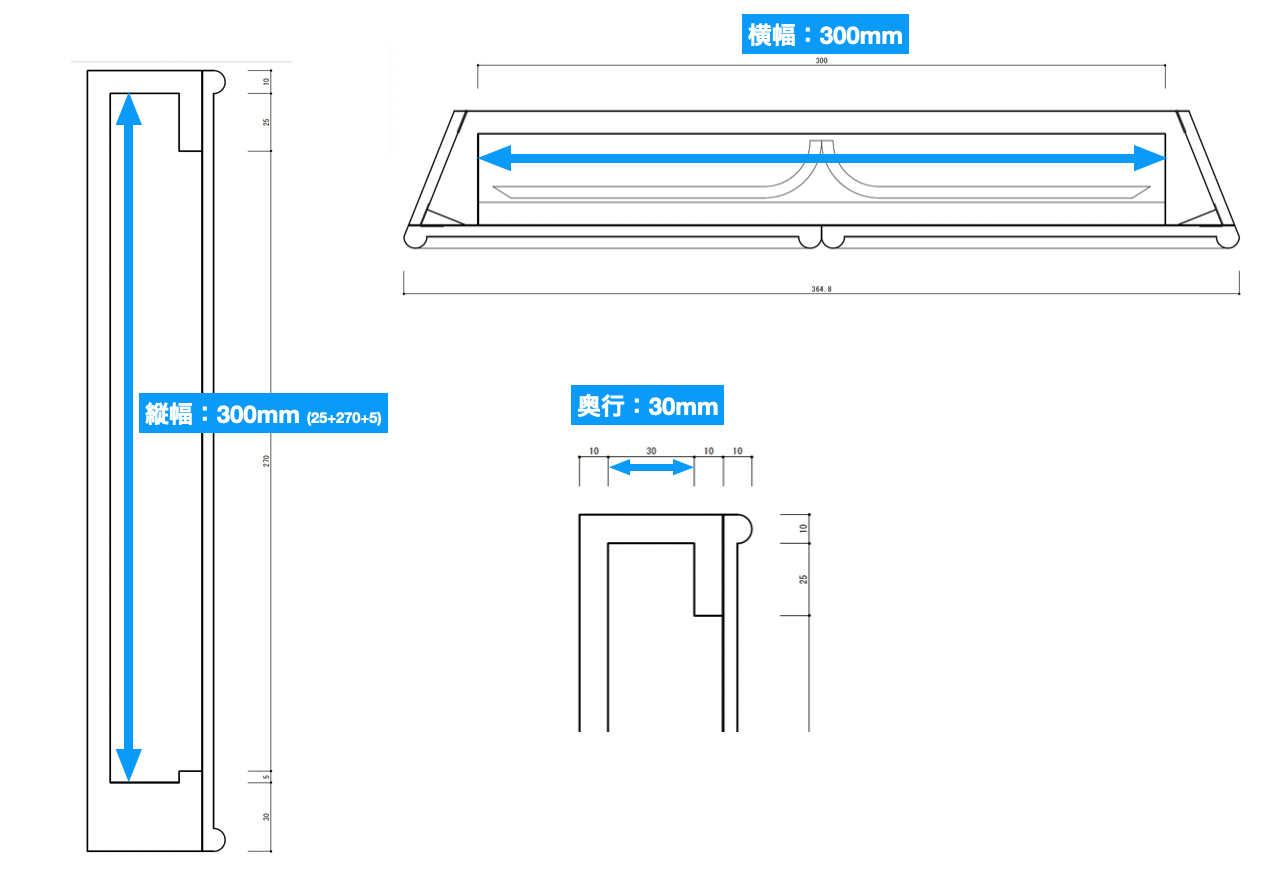

  • Thumbnail of 'Detailed dimensions'
    Detailed dimensions
